JSL chain plate series chip conveyor, JSG scraper series chip conveyor, JS series integrated chip removal filter system, oil water separator, eddy current separator, JSZ paper tape filter

JSG scraper series chip conveyor

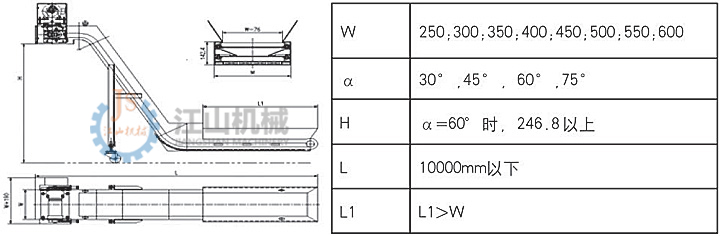

B\50 magnetic scraper
Performance characteristics and uses：
　 It is suitable for fine chips of iron and cast iron (30mm), usually with a length of 10 meters; it has few components and is easy to maintain and maintain.
　 It is equipped with a mechanical overload protection box for current overload protection. The size of each part can be designed according to the chip machine.
　 The chip removal device is widely used in CNC machine tools, machining centers, combined machine tools, automatic wire feeding, and purification.

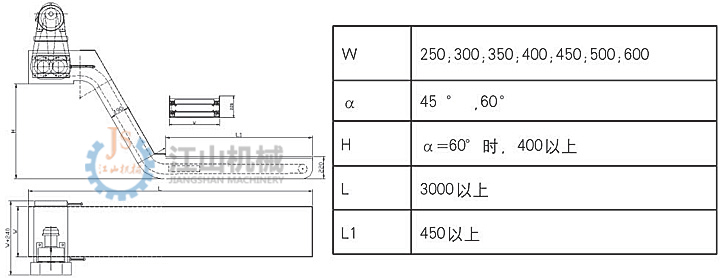

C、60 magnetic scraper
Performance characteristics and uses：
　 It is suitable for fine powdery chips of iron and cast iron (30mm or less). The magnetic cuttings are transported and filtered by the strong magnetic magnetic effect of permanent magnet materials.
　 It is equipped with a mechanical overload protection box current overload protection device; this part can be designed according to different chipping machinery, and can be integrated with the coolant tank.
　 The chip removal device is widely used in CNC machine tools, machining centers, combined machine tools, automatic wire chip conveying, and the purification device is used as a primary filter.

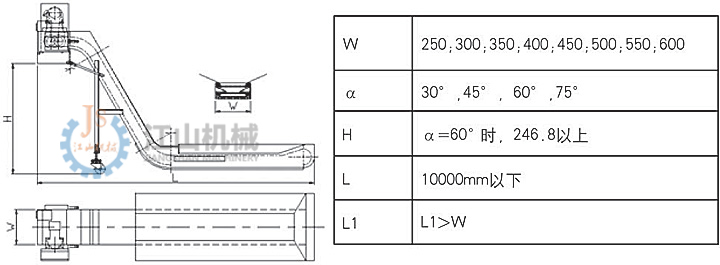

D、80 scraper
Performance characteristics and uses：
　 Suitable for a large number of fine chips (75mm or less) of iron and cast iron, and a chip conveying of 30m in total length.
　 It is equipped with mechanical overload protection; the size of each part can be designed according to the chip machine.
　 The chip removal device is widely used in CNC machine tools, machining centers, combined machine tools, automatic wire chip conveying, and the purification device is used as a primary filter.
